MidiThru x2

MidiThru x2 is two 1 to 5 MIDI splitters in one case. The device is useful for distributing MIDI events to multiple slave MIDI devices. The event propagation delay is negligible, so it’s perfect for distributing MIDI Clock in tightly synchronized MIDI setups.

MidiThru_x2#1_small

BOM is available here.

Schematics: MidiThru_x2.

Top panel outline: MidiThru_x2_top (1:1 scale).

Board outline in PDF format: MidiThru_x2 (1:1 scale).

Building MidiThru x2

Please follow this building guide.

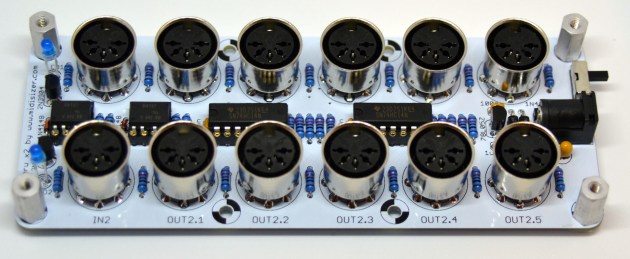

MidiThru_x2#2_small

Ordering MidiThru x2

To order MidiThru x2, please send an email to pete at kvitek c o m specifying how many PCB sets you need, a country where to ship them, and an email address to send the PayPal invoice to.

MidiThru x2 PCB with top panel — $30

MidiThru x2 14mm M3 stand offs, washers and screws — $10

Shipping:

Continental USA — $5 (California residents add 8.75% tax)
Canada — $7
Europe, Asia, Australia — $15

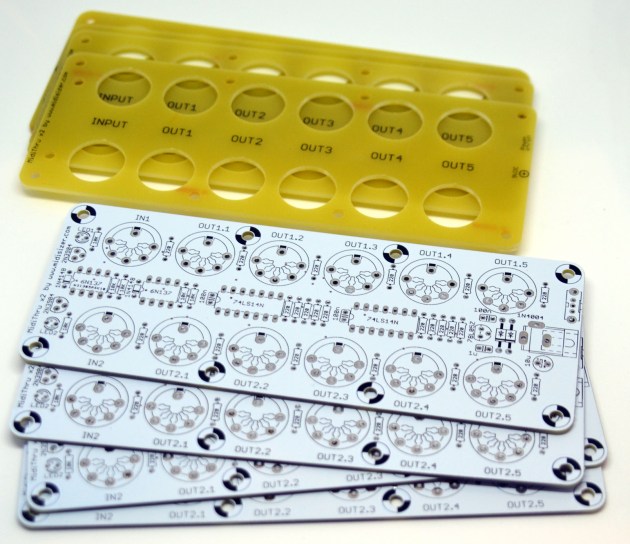

MidiThru_x2#3_small
